77′ Grand Alaskan Pilothouse 2002 $1,675,000Located in Jacksonville, FL

$1,675,000

Make:

Grand Alaskan Pilothouse

Motor Make:

Caterpillar 3406E

Horsepower:

340

Length:

Description

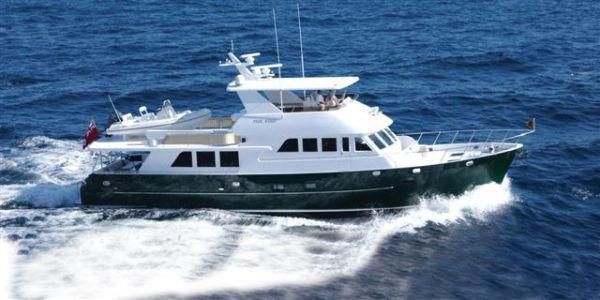

77′ Alaskan Pilothouse
Boat Name: “FIVE STAR”

Year: 2002

Current Price: US$ 1,675,000 Tax Not Paid

Located in Jacksonville, FL

Hull Material: Fiberglass

Engine/Fuel Type: Twin diesel

77′ Alaskan Pilothouse
Additional Specs, Equipment and Information:
Boat Name

“FIVE STAR”

Engines

Engine 1:
Engine Brand: Caterpillar
Year Built: 2002
Engine Model: 3406E
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Starboard
Engine Hours: 2623
Drive Type: Direct Drive
Engine Power: 800 HP

Engine 2:
Engine Brand: Caterpillar
Year Built: 2002
Engine Model: 3406E
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Port
Engine Hours: 2372
Drive Type: Direct Drive
Engine Power: 800 HP

ACCOMMODATIONS/LAYOUT

FIVE STAR is a highly customized 2002 Grand Alaskan 77 motor yacht.
She was designed and built by knowledgeable owners for extended cruising capability with the following criteria:
Equally comfortable at anchor or at the dock
Luxurious accommodations for owner, guests and crew
Ease of operation for a couple
Economical to operate
Easily maintained
Simplicity of operation

Interior

“FIVE STAR” interior layout is the product of 15 years cruising experience. Every aspect of her floor plan is reasonable, functional and well thought out making this yacht an extremely comfortable cruising home. The attention to design and detail allows her owners to operate the yacht without the necessity of crew. From her Saloon with double doors opening onto a spacious Aft Deck, a Galley with a large walk-in pantry suitable for a mega yacht (can convert to day head;already plumbed), spacious Staterooms with ensuite heads and abundant storage, a walk-in Utility Room with full size washer, dryer and upright freezer, separate and private Crew Quarters, a cavernous walk-in storage room, she’s a dream come true for any voyager.

All of “FIVE STAR’S” components are top of the line. For example, electrical cover plates and switches are VIMAR, lighting is by Cantalupi, mattresses are HMC’s innerspring system, Izerwaren hardware.

Salon

Entry via double French doors and Phantom disappearing, retractable screens from the Aft Deck or 3 steps down from the Galley and Pilot House
Mirrored forward wall, windows to port, starboard and aft provide a noticeable open airy atmosphere, sofa 2 chairs with ottoman’s and large coffee table.

Massive marble-topped end tables with drawers and bulk storage under
Full length built-in credenza with 42 inch Flat Screen with surround sound home theater system on electric lift (can be viewed up or down), and exceptional storage to port
Complete entertainment system that allows clean, crisp music to be listened to in any stateroom or area of the yacht via individual volume controls. System includes high quality speakers, subwoofers, 300 disc CD/DVD player, VCR, tuner and amplifiers.
Off white Fabric carpeting with Soundown insulating underlayment for noise and heat control
Kandaza reed valence over Hunter Douglas Duette shades for all windows
A/C control panel, AC outlets, phone jacks
Life-time brass finish hardware and overhead lighting

Galley

3 gentle steps up from Saloon or through port and starboard wing doors in the Pilot House, the Galley is open to the Pilot House giving it an extremely spacious feel
To starboard full, U shaped galley with granite sole, granite counter tops and ample cabinet storage with a full complement of appliances:
GE Profile Performance side-by-side frost-free refrigerator with 30 cu.ft. Capacity, ice and water dispenser in door, teak door panel
GE Profile Performance 36, 5-burner built in ceramic cook top
GE Profile Performance 30, built-in conventional/convection self-cleaning oven with electronic controls and teak door panel
GE Profile microwave with 2-speed, high-capacity exhaust fan vented to outside and light
Extra large stainless steel double sink with Grohe faucet/spray nozzle, ¾ hp GE Disposal, soap and lotion dispensers, drain basket and wooden chopping board
GE full-size compactor with teak front panel
Bosch Super Quiet 5-cycle dishwasher with electronic controls and teak front panel
Ample electrical outlets and phone jack
Life-time brass finish hardware and overhead lighting
Walk-in pantry with shelving for can goods as well as bulk items
8 bar with granite counter top, built-in bottle display, decorator bar sink with hot/cold water, and cabinets under with built-in glass storage for highball, wine and champagne glasses, liquor storage and drawers. The bar has its own under-counter Sub-Zero refrigerator and GE Monogram clear-ice ice maker (50 pounds per day), with teak front panels
Stereo volume control, A/C control panel, AC outlets
Life-time brass finish hardware and overhead lighting, accent and recessed lighting

Pilothouse

Access through port and starboard wing doors, the Galley, full-sized staircase from the Flying Bridge or from the staircase leading to the forward Staterooms
Exceptional visibility with windows port and starboard and aft
Phantom disappearing, retractable screens on the wing doors
Full bridge electronics and equipment (see listing under separate heading) housed in a raised ostrich skin leather-covered and camphor burl veneered console.
Samsung flat screen TV that retracts into the overhead, viewable from Galley as well as the lounge seating
AC and DC electrical outlet, telephone jack and A/C control panel
2 STIDD Admirals chairs covered in black ultra leather on Crown Deck Track System which allows the chairs to travel 36, and swivel around to the settee table,
L shaped settee covered in Ostrich skin leather and tapestry
Settee table is 2 ½ by 5 high gloss teak with ebony and camphor burl design and folds out to double in size thus seating 7 (9 with use of Captain’s chairs).
Massive bulk storage under the settee, ample drawer storage for manuals, hand-held electronics, cruising guides, etc. Chart storage in 2 chart drawers, one at the helm with red chart light and one under the table
Sole high gloss teak and holly
Life-time brass finish hardware and overhead lighting, accent and recessed lighting

VIP Stateroom and Ensuite Head

Access from lower companion way
Center-line queen bed with massive storage under and built in night tables
Cedar lines hanging locker, bank of drawers and cabinets
19 Samsung Flat Screen with blueray DVD. AC outlets, phone jack, stereo volume control, A/C control panel
High gloss teak and holly floor
2 oversized hatches with Ocean Aire retractable screens and black out shades
Marble counter top and sole in head, mirrored overhead, port light in Head
Toiletry storage, linen locker
Sealand fresh water vacuflush head, large shower, single sink
Life-time brass finish hardware and overhead lighting, accent and recessed lighting

Guest Stateroom

Master Stateroom

Access from lower companion way and a secondary Engine Room door
Full-width master with king-size bed, massive storage under, bedside tables with granite tops and drawers
To port are 4 banks of dresser drawers, cedar lined walk-in closet forward with double hanging, 4 extra large cedar drawers, 2 extra large cedar cabinets, built in jewelry drawers, access to NuTone central vacuum system and safe. There is a second cedar lined walk-in closet aft starboard side with secondary access door to the Engine Room
To starboard is a home office with desk, file drawers, storage drawers, computer ports and over-sized drawers to house printers, scanners, etc.
26inch Samsung flatscreen with blueray dvd. AC outlets, phone jacks, wind and depth indicators, stereo volume control, A/C control panel
4 extra large port lights with sliding Shoji screens
Off white Fabrica carpeting
Life-time brass finish hardware and overhead lighting, accent and recessed lighting

Master Head

Granite counter tops, marble inlay sole, mirrored overhead, port light

Designer faucets on whirlpool and double sinks
Mirrored wall of toiletry shelving, linen storage and drawers
Kohler whirlpool tub with shower and sliding glass shower door
Sealand fresh water vacuflush head
Life-time brass finish hardware and overhead lighting, accent and recessed lighting

Crew Quarters and Ensuite Head

Principal access is aft from Euro transom or secondary through the Engine Room
Twin berths (one oversized for spare prop storage under), night table between, drawers under, drawer bank and cedar lined hanging locker
13 Panasonic TV/VCR, stereo and CD player
Sealand fresh water vacuflush head, shower, single sink, linen storage, toiletry cabinet
Storage room port side of the Crew Quarters for all manors of spares, tools, dive equipment, cleaning products, etc. measures 6 X 10.

Utility Room

Access from the lower companionway starboard side, this is a walk in working area.
Appliances include:
GE full size front loading washer and dryer with multiple cycles, automatic dispensers and end-of-cycle signal
GE deluxe upright frost-free 13.7 cu.ft capacity freezer
Large storage cabinets, shelving for laundry products and bulk storage in sole hold
High gloss teak and holly sole
Extra large port light with screen
Life-time brass finish hardware and overhead lighting

Mechanical and Engine Room

2 Caterpillar 3406E Diesel’s 800 HP
ZF Irm 350 A Transmissions 2.636:1
Northern Lights: M844LK 20 KW Generator, 2107 hours, M864K 25 KW Generator, 2171 hours.
(2) 65 gallon tanks new and/or used oil capacity
Factory Sound Shields and Water Separator mufflers in Exhaust System
3 Stainless Shafts with “Dripless” Seals
Propellers: 1 pair Nibral 5 Bladed, 1 pair Nibral 4 Bladed
Fuel Filters: Single Racor 1000 Series for each Generator
Duel Racor 1000 Series for each main Engine and for Fuel Transfer/System
Oberdorfer Fuel Transfer/Filtration Pump
Engine Driven “Crash Pump” on Starboard Engine
Balmar 220 AMP High-output Alternator and Regulator on Port Engine (supplies Inverters and “House” Batteries
SidePower SP 285 TC Bow Thruster “20 HP 12” propeller
Trac Digital Stabilizers by American Bow Thrusters. Dual Hydraulic pumps, one on each main engine. 9 sq. ft. fins. Can be modified for “stabilization at anchor” with addition of generator driven hydraulic pump and fin modification.
Cruisair Chilled Water System, 90,000 BTU, 7 zones, MX-5 Controls, Variable Frequency Drive Soft Starts for Compressors
Filtration Concepts DM 1226S Watermaker, 50 gph, 1200 gpd, Fresh Water Flush, Automatic Shutdown when tank is full, Remote Controlled on Lower Helm
Hydrotech Fresh Water Watermaker, 25 gph
Water Mate Fresh Water Tank Recirculation-Disinfection-Ozonration System
(2) 20 Gallon Raritan Hot Water Heaters
Teel Shallow Well AC Water Pump
Groco Paragon Senior DC Water Pump
Sealand Vacuflush Fresh Water Toilet System, M Vacuum pump, Tankwatch Level Monitor, Tankmaster Discharge Pump Control
Groco Oil Exchange System, services both main engines and generators, can supply new oil from either bulk tank and return used oil to either bulk tank or to the fuel manifold to blend with fuel and burn
(4) High Volume AC Engine Room Intake/Exhaust Fans
(2) Sea Chests in Engine Room for all incoming sea water
Soundown and Van Cappelan Engine Room Insulation, extreme quiet in all living areas
Fire Control: Fireboy FE 241 Automatic Engine Room Fire Suppression, includes automatic engine shutdown switch with override 7 hand-held Dry Powder Extinguishers

Electronics and Equipment Upper Helm

2 STIDD Admiral Helm Seats with Ultra leather upholstery and Stamoid covers
Stainless Steel Wheel
5 Danforth Compass
Robertson AP20 Autopilot
Furuno NavNet 3D

AIS System

All new Nav. Electronics 2012

5 new VEI VM Series monitors high super brightness

2 Furuno Radar 48 mile and 96 mile

New Nobeltec Admiral software

New marine radio with AIS

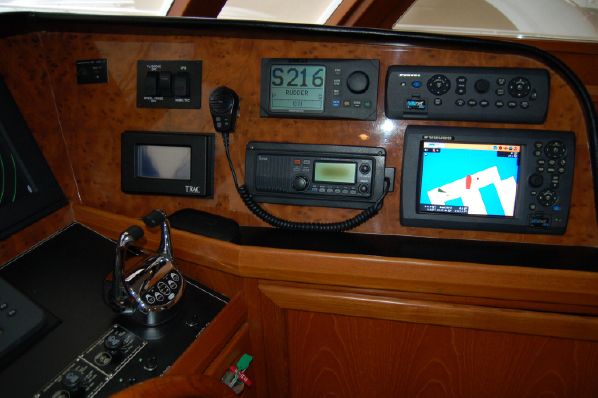

LOWER HELM:
Teak Wheel
2 STIDD Admiral Helm Seats with Ultra leather upholstery on Crown Deck Track System
5 Danforth Compass
Robertson AP 20 Autopilot
Furuno NaveNet 3D

Icom M127 VHF (includes hailer)
Raymarine ST 60 Depth Finder
Raymarine ST 60 Speed Log
Trac Stabilizer Control
Glendinning Electronic Controls (with backup)
Rudder Angle Indicator
Side Power Bow Thruster Control
Lofrans Windlass Control
ACR Spotlight Control (6 million candle power)
Cat Engine Instrumentation
Computer Monitor
AC & DC Power Outlets
Telephone Outlet
Start & Kill Engine Switches
Windshield Wiper Controls (3) with On/Off, Variable Speed, Intermittent & Wash Options
Kahlenberg Horn Controls (2 each triple set)
Fire Boy Control includes Automatic Main Engine Shut Down
Tank Tender Gauge
Tankmaster 4 & Tankwatch 4 Controls
Cruisair On/Off Control
Watermaker Remote Panel Features Auto Shutdown when tank is full
Status Panel indicating Bilge Pump Activity, High Water Alarms and Navigation Lights
(2) Trace Inverter
Remote Control Panels for (2) 4000 Watt Inverters
Xantrex Battery Monitor
Raymarine ST60 Wind speed/Direction Gauge (Wind speed and Depth Repeaters located in Master Stateroom with Anchor Alarm)
Generator Remote Control Panels include Start/Stop, Oil Pressure, Temperature, Voltage and Hour Meter
AC and DC Breaker Panels with Meters
A/C Power Management Panel
Weems and Plath Barometer
Weems and Plath Clock
Gateway PC Dedicated to Navigation Programs

Electrical

Electrical contractor was Walker Industries, Panama City, Florida. Brought into complete the wiring.

(5) Bilge Pumps with Indicator Lights on Lower Helm Status Panel

(5) High Water Alarm Switches with Indicator Lights on Lower Helm Status Panel

Newmar 40 AMP 12V Charger for Generator Batteries

(3) Newmar 35AMP 24V chargers for: Engine Start Batteries, House Batteries, Windlass & Thruster Batteries

(2) Trace 4000 Watt Inverters, 120AMP charging capacity for House Batteries. Adequate battery capacity to run refrigeration (5) and ice makers (4) for 10 hours for “quiet” nights at anchor. Features generator Auto Start if batteries reach 51% of capacity. While underway the Balmar Alternator will supply everything required to keep refrigerators and icemakers running without depleting batteries

(2) 50AMP Shore Power Cords on stern with Glendinning Cable Masters

(2) Extra 50AMP Shore Power Cord, 65 ft long

(2) Isolation Transformers, one accommodates 50 or 60 cycle

Fittings and Hardware

Stainless Steel Deck Hardware
Twin Station Hydraulic Steering, Power Assisted
Lofrans Windlass, Double Gypsy with Capstan
Ground Tackle, 105 lb CQR with approximately 300, Hi-test Chain, 100 lb Delta with approximately 300, Hi-test Chain
Integrated Swim Platform with Built In Stainless Steel Swim Ladder

Flybridge

Hard Top with Intergal Mast, designed to be retrofitted to Hard Enclosure
Hatch to Lower Station Pilothouse via Staircase
“L” Shaped Settee with Sunbrella “Dry Cell” Cushions and Stamoid Cover. Storage under seats.
(2) HI/LO Corian Tables
Bar/Counter Area with Refrigerator/Icemaker, Sink with hot and cold water, 2 banks of storage drawers. Built-in Trash Receptacle.
(2) STIDD Admiral Helm Chairs with Ultra leather upholstery and Stamoid covers
Large capacity Air Compress and tank for horns and toys

Tender

Nautica RIB 18, Center Console Wide body
Yamaha 115 HP 4-Stroke
60 Gallon Fuel Tank
13 Gallon Water Tank
Bow, Pilot and Rear Seating

Boat Deck

Storage Cabinets (2) with shelving

DCS 27, Gas Grill (50,000 BTU) with 2 Aluminum gas bottles 2011

Hot & Cold Hose Bibs

Stainless Steel Rails with Stamoid Dodgers

Sliding Hatch to Aft Deck via Staircase

Complete Guttering System for Drainage from Hard Top, Bridge, Boat Deck, Aft Deck and Main Deck to Water Level

Aft Deck

Spacious and fully covered by the boat deck for use in rain or sun
Large settee with dry cell cushions covered in Sunbrella with Stamoid cover
Hi/Lo and In/Out Dining/Coffee table with Granite top
4 teak folding chairs with cushions imported from Bali
Granite topped wet bar with hot/cold water, U-Line refrigerator/ice maker, bank of drawers
Exceptionally large Locker to Port to store all 4 teak chairs, etc.
Large Locker to Starboard for foul weather gear and cleaning supplies
Telephone jack, cable TV outlet, AC and DC outlets, stereo volume control knob, dimmable overhead lighting, 2 high intensity halogen flood lights to illuminate the swim platform area
Staircase with sliding hatch for quick, easy access to Boat Deck
2 curving staircases to the Euro Transom with Freeman door access to the Crew Quarters and Engine Room and Freeman hatch to the very large Lazarette
Access lockers for 2-50 AMP 75 foot long power cables with Glendinning Cable master, and water, cable TV and phone connections
Integrated stainless steel 3-fold swim ladder that retracts into the swim platform
2 Built in rod holders
Textaline sun screen that extends from Boat Deck to Aft Deck stanchions

Console/ Helm

VHF

Depth Gauge

Speedometer

Tachometer

Hour Meter

12V Receptacle

Radio/DVD Player mounted in Water Proof Case with Remote Controls

Lift Eyes/Tie Down Eyes

Rod Holders

Swim/Dive Ladder

Bilge Pump

Towing Eye

Bimini Top (folding)

Lockers for Lines & Fenders, Anchor & Rhode, Life Vets and First Aid Kit

Built-in Cooler

Battery Switch

Running Lights

Console Cover

Full Stamoid Cover

Recent Updates

Repacked rudders, dropped both

R&R stabilizers, new cylinders and seals. Updated software

New raw water pump and added spare

Metcalf complete new Exhuast included risers

New carpet throughout installed late 2012

All new T.V’s and added Blue Ray DVD

Replaced both hot water heaters

Added additional depth finder, hooked thru central system

Replaced house battery charger

Installed new variable speed bow thruster motor. Thruster now 100% variable speed

The flybridge Stidd chairs cushions were replaced in May 2012

included tool/spare room

115 Yamaha was R&R March of 2013

The slide out DCS grill was replaced in 2011

The fresh water system is also spot free thru a membrane

Replaced the Air handler and duct work for air Condition system 3/2014

New bottom paint 4/2017

Remarks

“FIVE STAR” was featured in Yachting magazine.

Exclusions

All personal property, tools, fishing gear, certain accessories and art work

Configuration

“FIVE STAR” is a raised pilot house motor yacht with full walk around easy access side decks, Portuguese bridge, hardtop encompassing the entire flying bridge area, fully covered aft deck and Euro transom. The king bed master stateroom, queen berth VIP guest stateroom, twin berth guest stateroom and separate crew/guest cabin is aft with twin berths. All staterooms have ensuite heads.

See more at our web site :

Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
