Brownell Yard trailer Semi Used 1998 35 ton ,Deck factory rebuilt in 2011

Used 1998 35 ton Brownell Yard trailer Semi Deck factory rebuilt in 2011

Specifications:

Capacity 35-Tons

Overall Length 37′

Frame Width 8′ 6″

Center Opening Clearance 32″ x 25′

Frame Size 12″ x 16″ x 3/8″

Weight 15,000 lbs

Draft Capacity 7′ Power or Sail

Maximum Height of Pads 78″ Above Support Logs

Arms (6) Galvanized Extending

Hydraulic Cylinders Stainless Steel Shafts

Pads (6) 19″ x 24″ Vinyl Covered

Wheels / Tires Rear (4) Galv anized 28 x 13 -15 Landing Wheels (2) Hydraulic 29 x 8 -15

Wheel Hubs Oil filled

Suspension Rear Oscillating Hydraulic Bogie Action

Hydraulics 24 V Pumps and Valves 3,000 PSI

Power Source (2) 12 V 4-D Batteries

Charging Receptacle Plug & wiring provided

Grease Fittings At all points of wear

Pivot Shafts Stainless Steel

The Y 35 model is designed to be towed by yard equipment or a truck, and as always, built for customers that work their equipment hard. Hauling capacities range from vessels under 30′ to vessels in execs of 60′. The Y35 is capable of power and sail boat hauling up to 8 foot drafts.

This trailer can be modified to a pintle or ring front prior to shipping.

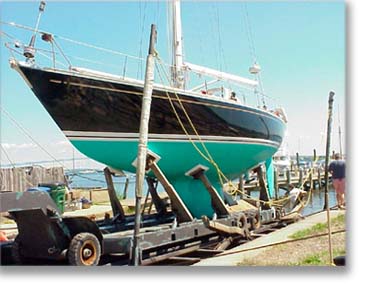

Y 35 in use prior to rebuild

Please call Brook at 508.996.3110 for additional information.
